FMQF Series Fully Automatic High Speed Flute Laminating Machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Laminating Machine
Condition:
New
Packaging Type:
Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
33 kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Printyoung
Model Number:
FMQF Series
Dimension(L*W*H):
22580*2750*3120mm
Weight:
10.5T
Certification:
CE
After-sales Service Provided:
Engineers available to service machinery overseas
Max. Format(WXL):
1300X1300 mm(51"X51")
Min. Format(WXL):
400X400mm(15.7"X15.7")
Max.Sheet Thickness:
8MM
Max. Speed:
130m/min
Top Sheet:
250~450g/m2
Bottom Sheet:
A,B,C,E,F flute and double flute
Lamaination Tolerance:
±1.5 mm
name:
FMQF Series Fully Automatic High Speed Flute Laminating Machine
Packaging & Delivery
Packaging Details

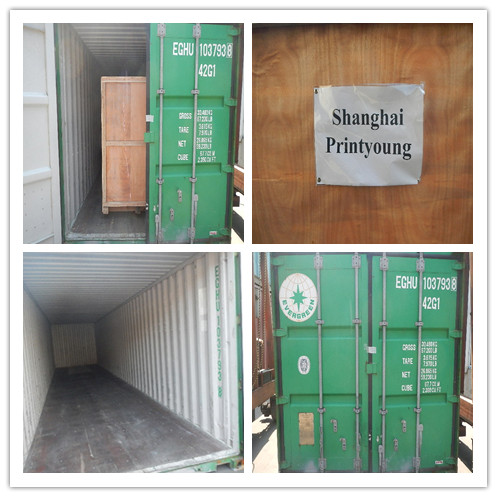

WOODEN CASE EACH FMQF Series Fully Automatic High Speed Flute Laminating Machine
Port
Shanghai
Lead Time :
30 days

Product Description

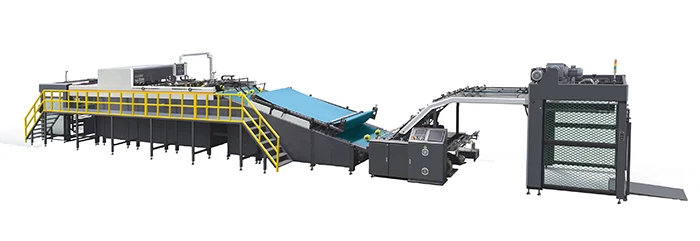

FMQF Series Fully Automatic High Speed Flute Laminating Machine


Features:
A.      New generation of single sheet flute laminating machine with high automation,  which is  suitable for high  speed lamination between corrugated paper and cardboard paper.



B.       Designed for continuous production from sheet feeding to laminating, compressing and finally delivering to non-stop automatic down stacker. Max production speed can reach 9000 sheet/hour.



C.       With accurate laminating and reliable performance, it is competent for large volume and high quality production.



D.      Flexibility for various paper types can satisfy different industry needs.



E.       Automatic in line pile reversing system.



Performance And Charcteristics:

1.Top sheet feeder:



*Adopting high speed automatic feeder. Max. performance can reach 12000 time/hour.



*With pneumatic side register, top paper can be transported to laminating unit more accurately.



* Equipped with pre-loading system.



* Side-loading can be optional.



2.Bottom sheet feeder




* Vacuum suction feeding. Imported high quality suction belt provides stabilized feeding performance.



* Sheet range: Single face flute A, B, C, E,F and double face flute.



* With Optional Servo driving system, max. feeding speed can reach 9000 sheet/hour.



3.Gluing & Laminating unit



* Chromed gluing roller can save glue consumption.



* Automatic glue supplying according to glue level  between rollers.Avoid glue overflow. Automatic warning for  glue shortage



*Elastic front register can avoid bottom sheet from exceeding. Positioning of top and bottom sheet can be optimized for high precise lamination.



4.Compression unit



* Adjustable floating compression unit.Durable high quality compression belt.



* Compressing speed is variable with inverter for different paper and glue.



5.Pile reversing System



* Automatically reverse piles of paper and then deliver to down stacker without stop.



*It can minimize the problem of paper curve after lamination, saving the labor cost for restacking. Rapidly improve the production quality and efficiency.



6.Non-stop automatic down stacker



* Non-stop paper delivery for continuous production without shut down of paper download.



* Full automatic process with simple operation.



7.Operation



* Integrated touch screen control with friendly interface.



* With its ease of use, operator can easily control the whole production process.



8.Component



* Critical driving parts only adopt NSK bearing.



* High quality main electrical components like from Schneider, provide reliable system performance and ease of maintance



Main Technical Parameter:



Model

FMQF-1300

FMQF-1480

FMQF-1650

Max. Format(W×L)

1300×1300 mm(51"×51")

1480×1480 mm(58"×58")

1650×1650 mm(64"×64")

Min. Format(W×L)

400×400mm(15.7"×15.7")

Max.Sheet Thickness

8mm

Max. Speed

130m/min

Top Sheet

250~450g/m2

Bottom Sheet

A,B,C,E,F flute and double flute

Lamination Tolerance

±1.5 mm

Power Consumption

33 kw

33 kw

38 kw

Dimension(L×W×H)

22580×2750×3120mm

24280×2950×3120mm

24780×3100×3120mm

Weight

10.5T

11.5T

12.8T
